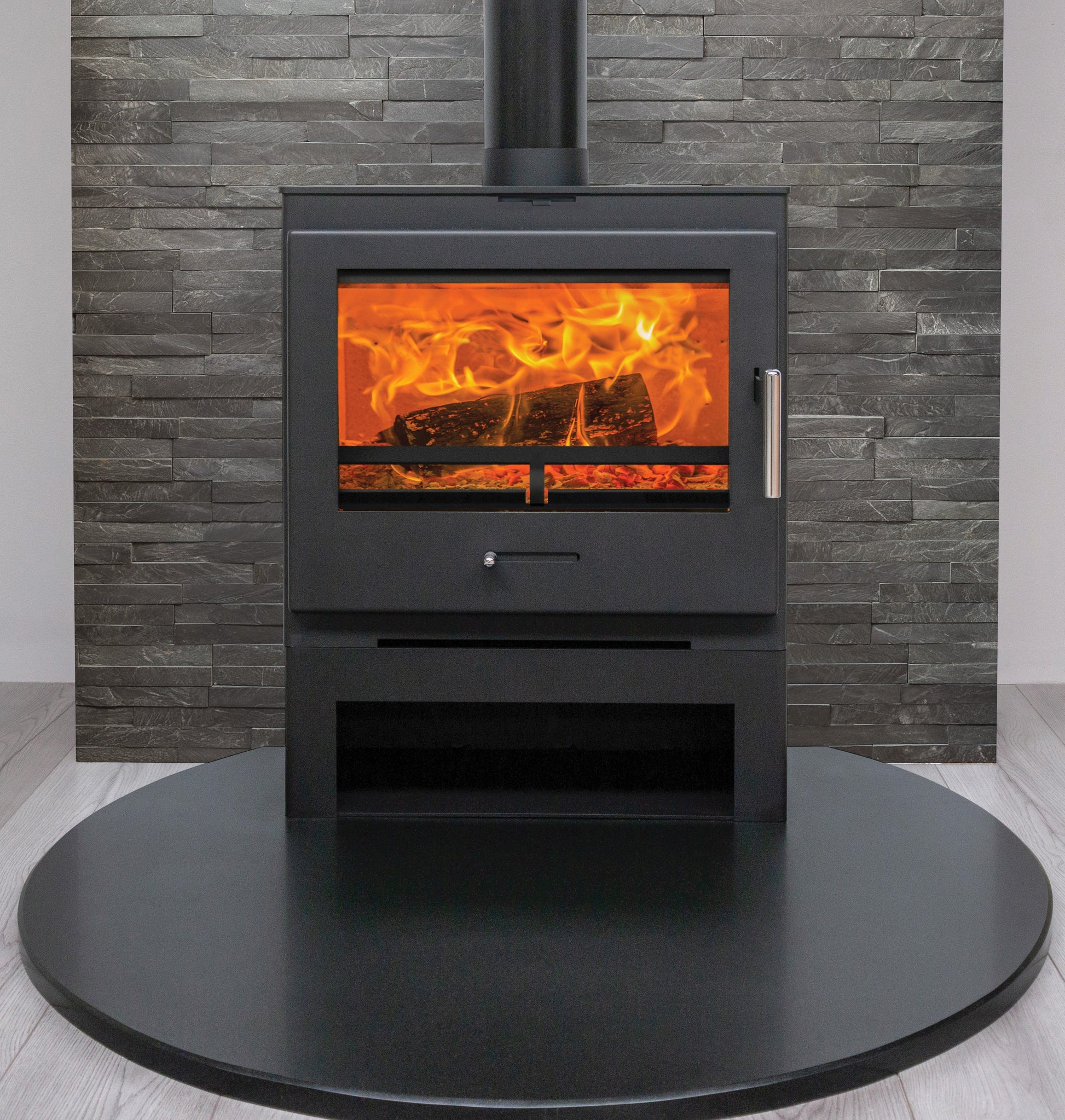

X40 Cube Panorama Stove

The Xtrawide has the same contemporary styling as its smaller brothers but is a wide screen giving a more impressive view of the fire burning brightly.

This stove is perfect for wider fireplaces where a greater range heat output is required and can be supplied with a 200mm or 400mm stand.

Specifications

Flue dia. (mm) outlet & position    125 Top/rear
Nominal output (kW)    5
Range rating (kW)    3-8
Distance from rear of stove to centre of top flue outlet (mm)    116
Distance to flammable materials: From back (mm)    250
- From back with optional heat shield fitted (mm)    250
- From sides (mm)    400/500
- From front (mm)    800
Heating area (m²)    30-130
Efficiency (net): Wood    79.5%
Efficiency (net): Smokeless fuel    72.4%
CO% @ 13% O2: Wood    0.09
CO% @ 13% O2: Smokeless fuel    0.09
Certified    CE & EN13240
HETAS approved    Yes
Defra approved    Yes
