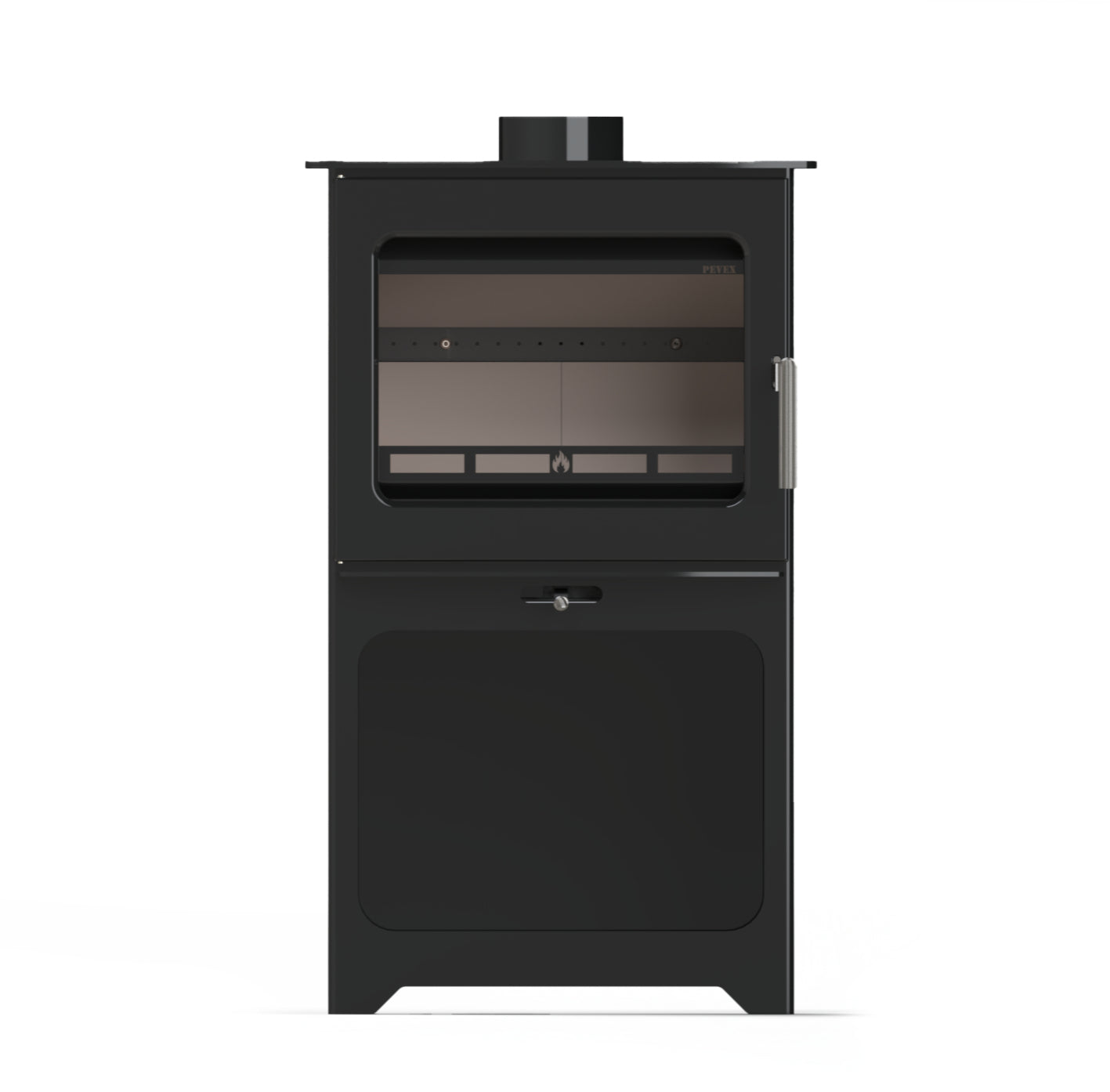

Woodbridge 5 Logstore Stove

The Pevex Woodbridge 5 Logstore is a UK-built, Ecodesign-ready wood-burning stove with a 5kW nominal heat output and an elevated log storage area.
Meets the latest emissions standards and is approved for use in smoke control areas.
Large glass door provides an excellent view of the flames, enhanced by an airwash system.

Specifications

Log length (mm)           400
Flue dia. (mm) outlet & position      125 Top/rear
Nominal output (kW)            5
Range rating (kW)                2-8
Distance from rear of stove to centre of top flue outlet    155
   (mm)
Distance to flammable materials: Rear with single wall      250
flue (mm)
Rear with twin wall flue (mm)       140
From sides (mm)             450
From front (mm)            1200
Heating area (m²)         20-115
Efficiency (net): Wood     84%
OGC@ 13% O2                74
CO% @ 13% O2: Wood    0.10
Particulates mg/NM3     12
Certified                     UKCA
Ecodesign                Yes
Defra approved      Tested
