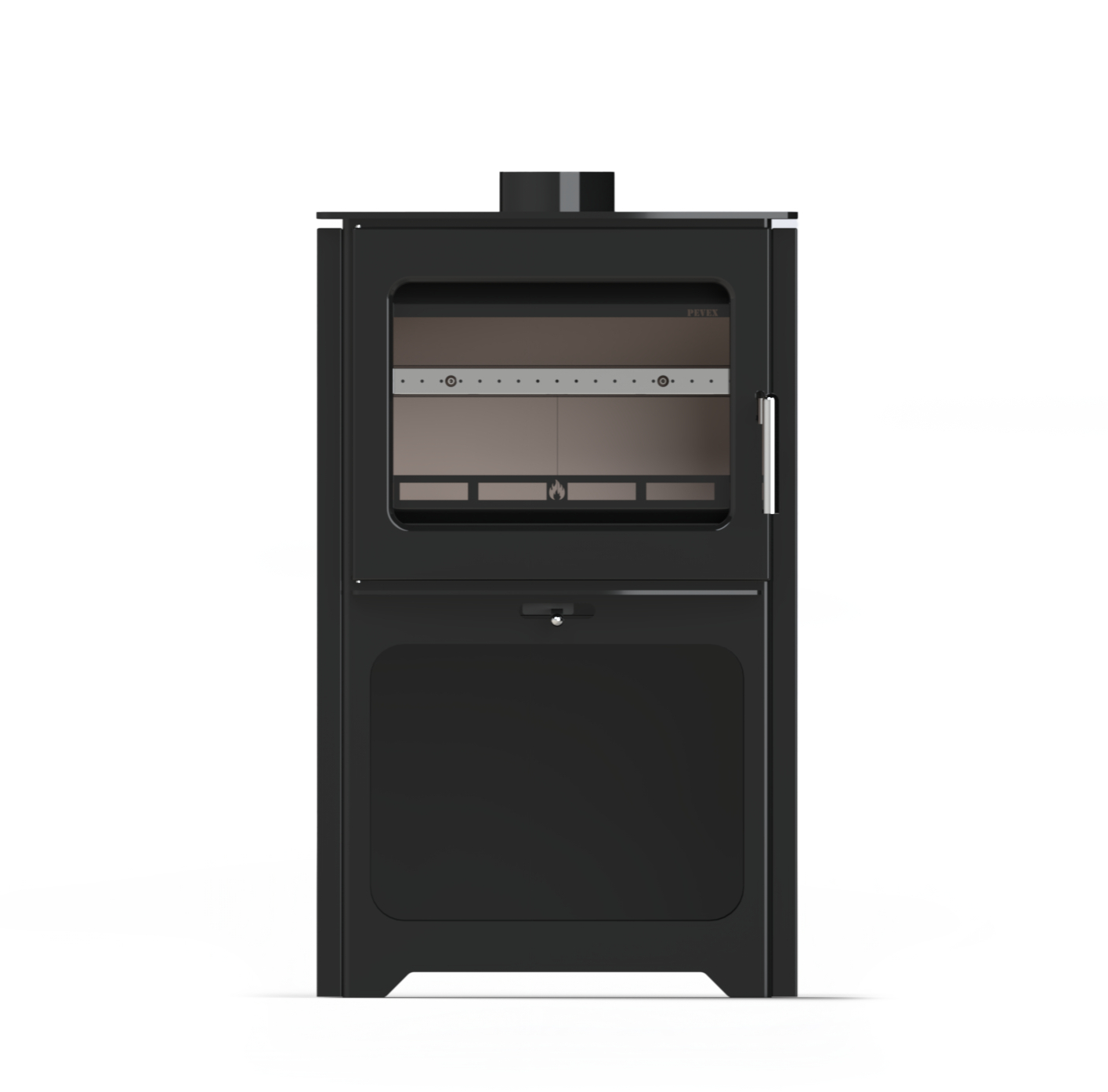

Woodbridge 5 Logstore Convector Sides Stove

The Pevex Woodbridge 5 LSC is a wood-burning stove with an integrated log store and convector sides.
 The convector panels on the sides help to reduce the distance needed to combustible materials,
 allowing for a more flexible installation. This model is part of the Woodbridge 5 range, designed and built in the UK and introduced in 2025

Specifications

Log length (mm)                400
Flue dia. (mm) outlet & position    125 Top/rear
Nominal output (kW)      5
Range rating (kW)      2-8
Distance from rear of stove to centre of top flue outlet    155
   (mm)
Distance to flammable materials: Rear with single wall      250
   flue (mm)
   - Rear with twin wall flue (mm)   140
   - From sides (mm)                 450
   - From front (mm)                 1200
Heating area (m²)                    20-115
Efficiency (net): Wood               84%
OGC@ 13% O2                          74
CO% @ 13% O2: Wood                   0.10
Particulates mg/NM3                  12
Certified                            UKCA
Ecodesign                            Yes
Defra approved                      Tested to
