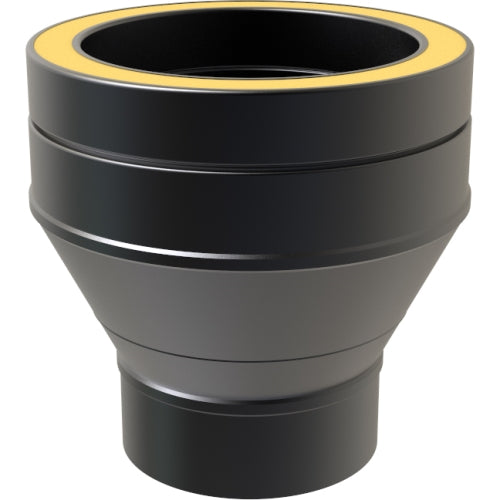

TWPro MB - Single Wall to Twin Wall Increaser - Ø 175-Ø 200 (37-175-002)

This Increasing Adaptor is used to connect Ø 175mm Black Stove Pipe, Vitreous Enamel or 1mm Stainless STeel Single Wall Pipe to Ø 200mm TWPro Twin Wall Insulated Chimney.

Features

High-Temperature Resistance: Tested to withstand continuous operating temperatures up to 600°C, suitable for T600 applications.
Durable Construction: Inner layer made of 316L stainless steel (0.40mm thick) and outer layer of 304 stainless steel (0.40mm thick) for enhanced corrosion resistance and longevity.
Efficient Insulation: Insulated with compressed rockwool at a density of 200kg/m³, providing excellent thermal insulation and safety.
Secure Jointing System: Features a locking band that securely attaches to the twin wall chimney system, ensuring a tight and reliable connection.
Aesthetic Finish: Available in a sleek black finish that complements modern interiors.
Compliance and Approval: HETAS approved and CE marked, meeting stringent safety and quality standards.

Specifications

Designation: EN1856-1 T600 N1 W V2 L50040 G50 / EN1856-1 T200 P1 W V2 L50040 O20
System: TWPro Black
Inner Material: 316L Stainless Steel - 0.40mm thick
Outer Material: 304 Stainless Steel - 0.40mm thick
Insulation: Compressed Rockwool (200kg/m³)
Fuels: Wood, Oil, Gas, Low Sulphur Coal
Approvals: HETAS / CE
Distance to Combustibles: 50mm
