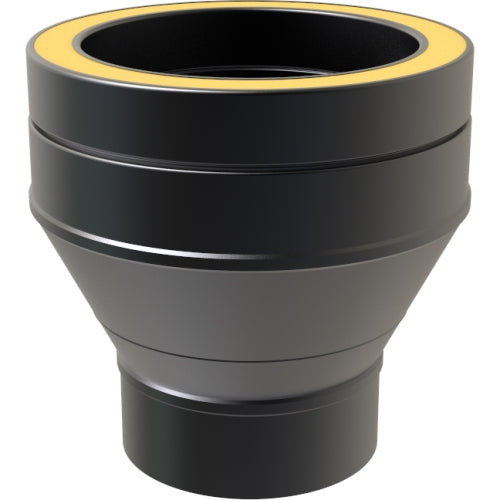

TWPro MB - Single Wall to Twin Wall Increaser - Ø 150-175mm (37-150-002)

Universal adaptor used as a increasing adaptor to connect the appliance outlet to the TWPro, can also connect single wall connecting flue or vitreous enamel to TWPro. This has a tapered design to allow a smooth transition from single wall to twin wall. Increases by a 25mm

Features

Seamless Transition: Tapered design allows for a smooth 25mm increase from single wall to twin wall flue systems.
Robust Construction: Inner layer of 316L stainless steel and outer layer of 304 stainless steel, both 0.40mm thick, provide enhanced corrosion resistance and longevity.
High-Temperature Resistance: Tested to withstand continuous operating temperatures up to 600°C, suitable for T600 applications.
Efficient Insulation: Insulated with compressed rockwool at a density of 200kg/m³, ensuring excellent thermal insulation and safety.
Secure Installation: Features a push-fit design with a locking band for easy and secure installation.
Aesthetic Finish: Available in a sleek matt black finish that complements modern interiors.
Compliance and Approval: HETAS approved and CE marked, meeting stringent safety and quality standards.

Specifications

Designation: EN1856-1 T600 N1 W V2 L50040 G50 / EN1856-1 T200 P1 W V2 L50040 O20
System: TWPro Black
Inner Material: 316L Stainless Steel - 0.40mm thick
Outer Material: 304L Stainless Steel - 0.40mm thick - High Temperature Black Coated
Insulation: Compressed Rockwool (200kg/m³)
Fuels: Wood, Oil, Gas, Low Sulphur Coal
Approvals: HETAS / CE
Distance to Combustibles: 50mm
