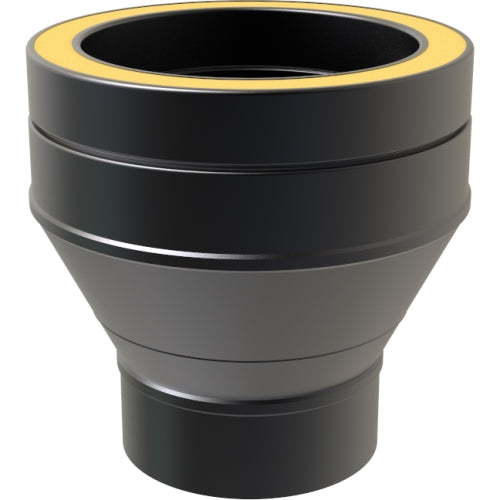

TWPro MB - Single Wall to Twin Wall Increaser - Ø 100-125mm

Universal adaptor used as a increasing adaptor to connect the appliance outlet to the TWPro, can also connect single wall connecting flue or vitreous enamel to TWPro. This has a tapered design to allow a smooth transition from single wall to twin wall. Increases by a 25mm

Features

Universal Compatibility: Connects single-wall flue pipes or appliance outlets to the TWPro twin-wall system.
Tapered Design: Ensures a smooth transition from single-wall to twin-wall flue systems.
High-Quality Materials: Inner casing made from 0.4mm thick 316L stainless steel; outer casing made from 0.4mm thick 304 stainless steel with a high-temperature black coating.
Efficient Insulation: 25mm compressed rockwool insulation with a density of 200kg/m³.
Secure Connection: Push-fit and locking band system (FitSystem) ensures a tight and secure fit.
Certified Safety: HETAS approved and CE marked to EN1856-1 standards.

Specifications

Designation:
EN1856-1 T600 N1 W V2 L50040 G50
EN1856-1 T200 P1 W V2 L50040 O20
System: TWPro Black
Inner Material: 316L Stainless Steel - 0.40mm thick
Outer Material: 304 Stainless Steel - 0.40mm thick - High Temperature Black Coated
Insulation: 25mm compressed rockwool, 200kg/m³
Fuels: Suitable for Wood, Oil, Gas, and Low Sulphur Coal
Approvals: HETAS / CE
Distance to Combustibles: Minimum 50mm
