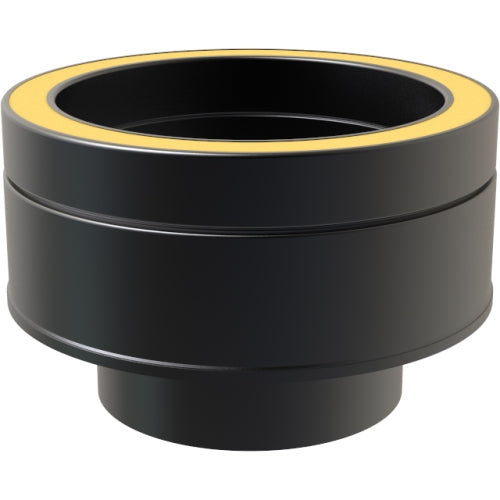

TWPro MB - Flat Increasing Adaptor - Ø 125-150mm (37-125-009)

Universal adaptor to connect the appliance outlet to the TWPro incresesing 25mm , can also connect single wall connecting flue or vitreous enamel to TWPro. This has a flat design to give an instant transition from the appliance or connecting flue to TWPro in the shortest length

Features

High-Temperature Resistance: Designed to withstand temperatures up to 600°C, suitable for T600 applications.
Dual Stainless Steel Construction: Inner layer made of 316L stainless steel (0.40mm thick) and outer layer of 304L stainless steel (0.40mm thick) with a high-temperature black coating for enhanced durability and corrosion resistance.
Efficient Insulation: Insulated with 25mm compressed mineral wool (190kg/m³ density) to maintain heat and improve energy efficiency.
Secure Jointing System: Utilizes a push-fit design with a locking band for easy and secure installation.
Aesthetic Finish: Available in a sleek matt black finish that complements modern interiors.

Specifications

Designation: EN1856-1 T600 N1 W V2 L50040 G50 / EN1856-1 T200 P1 W V2 L50040 O20
System: TWPro Black
Inner Material: 316L Stainless Steel - 0.40mm thick
Outer Material: 304L Stainless Steel - 0.40mm thick with high-temperature black coating
Insulation: 25mm Compressed Mineral Wool (190kg/m³)
Fuels: Wood, Oil, Gas, Low Sulphur Coal
Approvals: HETAS / CE
Distance to Combustibles: 50mm
