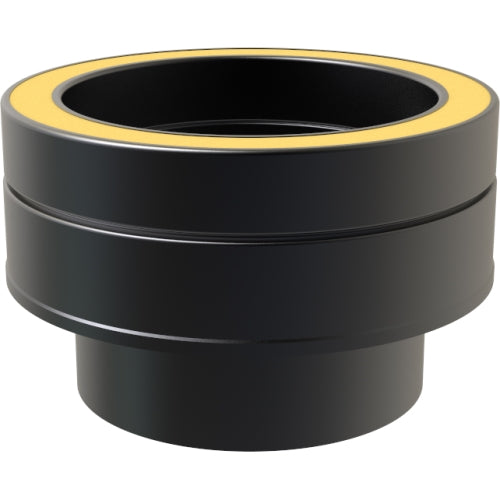

TWPro MB - Flat Adaptor to SW - Ø 80 (37-80-005)

Universal adaptor to connect the appliance outlet to the TWPro, can also connect single wall connecting flue or vitreous enamel to TWPro. This has a flat design to give an instant transition from the appliance or connecting flue to TWPro in the shortest length

Features

Versatile Compatibility: Connects appliance outlets to TWPro chimney systems; compatible with single wall or vitreous enamel flues.
Robust Construction: Inner skin made of 316L stainless steel (0.40mm thick); outer skin made of 304 stainless steel (0.40mm thick) with a high-temperature black coating.
Efficient Insulation: Filled with dense compressed rockwool insulation (200kg/m³) for excellent thermal efficiency.
Safety Certified: HETAS approved and CE marked, ensuring adherence to high safety standards.
Easy Installation: Comes with a locking band for secure and straightforward installation.
Clearance Requirement: Maintains a 50mm clearance to combustibles, ensuring safe operation

Specifications

Designation: EN1856-1 T600 N1 W V2 L50040 G50
EN1856-1 T200 P1 W V2 L50040 020
System: TWPro Black
Inner Material: 316L Stainless Steel - 0.40mm thick
Outer Material: 304 Stainless Steel - 0.40mm thick - High Temperature Black Coated
Insulation: Dense compressed rockwool (200kg/m³)
Fuels: Wood, Oil, Gas, Low sulphur coal
Approvals: HETAS / CE
