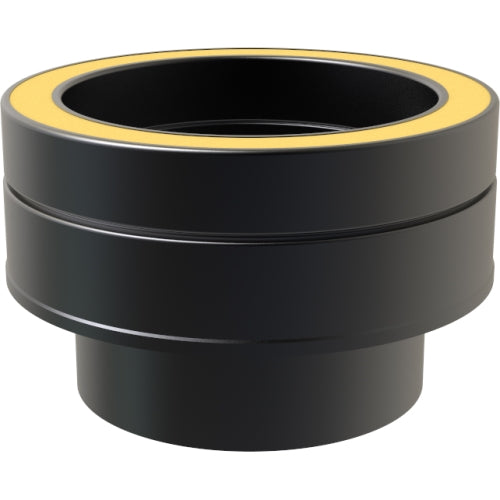

TWPro MB - Flat Adaptor to SW - Ø 80 (37-80-005)

Universal adaptor to connect the appliance outlet to the TWPro, can also connect single wall connecting flue or vitreous enamel to TWPro. This has a flat design to give an instant transition from the appliance or connecting flue to TWPro in the shortest length

Features

Universal Compatibility: Connects appliance outlets or single-wall flue pipes to the TWPro system.
Flat Design: Provides an immediate transition, reducing the overall length of the installation.
High-Quality Finish: Matt black powder-coated exterior for a sleek appearance.
Durable Construction: Inner casing made from 0.4mm 316L grade stainless steel; outer casing from 0.4mm 304 grade stainless steel.
Efficient Insulation: 25mm injected mineral wool insulation with a density of 190Kg/m³.
Secure Connection: Push-fit and locking band system (FitSystem) ensures a tight and secure fit.

Specifications

Model Number: 37-80-005
Diameter: Ø80mm
Inner Casing Material: 0.4mm 316L Grade Stainless Steel
Outer Casing Material: 0.4mm 304 Grade Stainless Steel – Powder Coated
Insulation: 25mm injected mineral wool, 190Kg/m³
Joint Method: Push-fit and locking band – FitSystem
Maximum Operating Temperature: 600°C
Distance to Combustibles: 50mm
