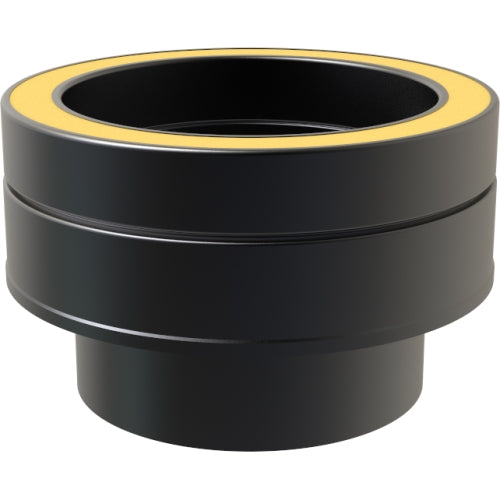

TWPro MB - Flat Adaptor - Ø 150 (37-150-005)

Universal adaptor to connect the appliance outlet to the TWPro, can also connect single wall connecting flue or vitreous enamel to TWPro. This has a flat design to give an instant transition from the appliance or connecting flue to TWPro in the shortest length

Features

Robust Construction: Features a dual-layer design with an inner skin of 316L stainless steel and an outer skin of 304 stainless steel, both 0.40mm thick, ensuring strength and corrosion resistance.
High-Temperature Resistance: Tested to withstand continuous operating temperatures up to 600°C, suitable for T600 applications.
Efficient Insulation: Insulated with 25mm of injected mineral wool at a density of 190kg/m³, providing excellent thermal insulation and safety.
Secure Jointing System: Designed with a push-fit connection and locking band for easy and secure installation.
Aesthetic Finish: Available in a sleek matt black finish that complements modern interiors.
Compliance and Approval: HETAS approved and CE marked, meeting stringent safety and quality standards.

Specifications

Designation: EN1856-1 T600 N1 W V2 L50040 G50 / EN1856-1 T200 P1 W V2 L50040 O20
System: TWPro Black
Inner Material: 316L Stainless Steel - 0.40mm thick
Outer Material: 304L Stainless Steel - 0.40mm thick - High Temperature Black Coated
Insulation: 25mm injected mineral wool (190kg/m³)
Fuels: Wood, Oil, Gas, Low Sulphur Coal
Approvals: HETAS / CE
Distance to Combustibles: 50mm
