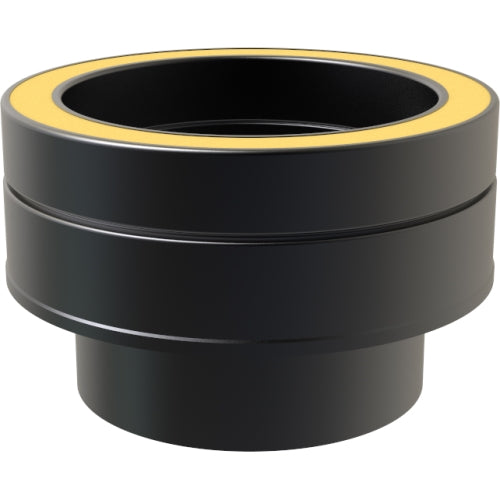

TWPro MB - Flat Adaptor - Ø 125 (37-125-005)

Universal adaptor to connect the appliance outlet to the TWPro, can also connect single wall connecting flue or vitreous enamel to TWPro. This has a flat design to give an instant transition from the appliance or connecting flue to TWPro in the shortest length

Features

Seamless Transition: Facilitates a smooth connection from single-wall flue pipes to twin-wall systems.
High-Quality Materials: Constructed with 316L stainless steel inner and 304 stainless steel outer casings, both 0.4mm thick.
Durable Finish: Outer casing is high-temperature black coated for enhanced durability and visual appeal.
Efficient Insulation: Features compressed rockwool insulation with a density of 200kg/m³ to ensure optimal thermal performance.
Safety Compliance: Maintains a minimum clearance of 50mm from combustibles, adhering to safety standards.
Certified Approval: HETAS approved and CE marked, meeting EN1856-1 standards.

Specifications

Designation:
EN1856-1 T600 N1 W V2 L50040 G50
EN1856-1 T200 P1 W V2 L50040 O20
System: TWPro Black
Inner Material: 316L Stainless Steel - 0.40mm thick
Outer Material: 304 Stainless Steel - 0.40mm thick - High Temperature Black Coated
Insulation: Compressed Rockwool, 200kg/m³
Fuels: Suitable for Wood, Oil, Gas, and Low Sulphur Coal
Approvals: HETAS / CE
Distance to Combustibles: Minimum 50mm
