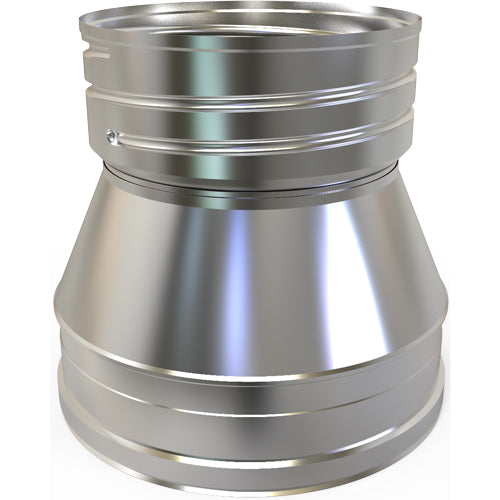

Twin Wall to Flex Adaptor - Ø 125 (2-125-099)

Transitional adaptor from TWPro to MI-Flues multi fuel liner. The adaptor has a screw fix coupling that screw onto the flexible flue liner. This transition must be made inside an existing class 1 Chimney. (no flex should be visible outside the brick or clay chimney.

Features

High-Temperature Resistance: Designed to withstand temperatures up to 600°C, suitable for T600 applications.
Dual Stainless Steel Construction: Inner layer made of 316L stainless steel (0.40mm thick) and outer layer of 304L stainless steel (0.40mm thick) for enhanced durability and corrosion resistance.
Efficient Insulation: Insulated with compressed rockwool (density of 128kg/m³) to maintain heat and improve energy efficiency.
Secure Jointing System: Utilizes a push-fit design with a locking band for easy and secure installation.

Specifications

Designation: EN1856-1 T600 N1 D V2 L50040 G50 / EN1856-1 T200 P1 W V2 L50040 O20
System: TWPro
Inner Material: 316L Stainless Steel - 0.40mm thick
Outer Material: 304L Stainless Steel - 0.40mm thick
Insulation: Compressed Rockwool (128kg/m³)
Fuels: Wood, Oil, Gas, Low Sulphur Coal
Approvals: HETAS / CE
