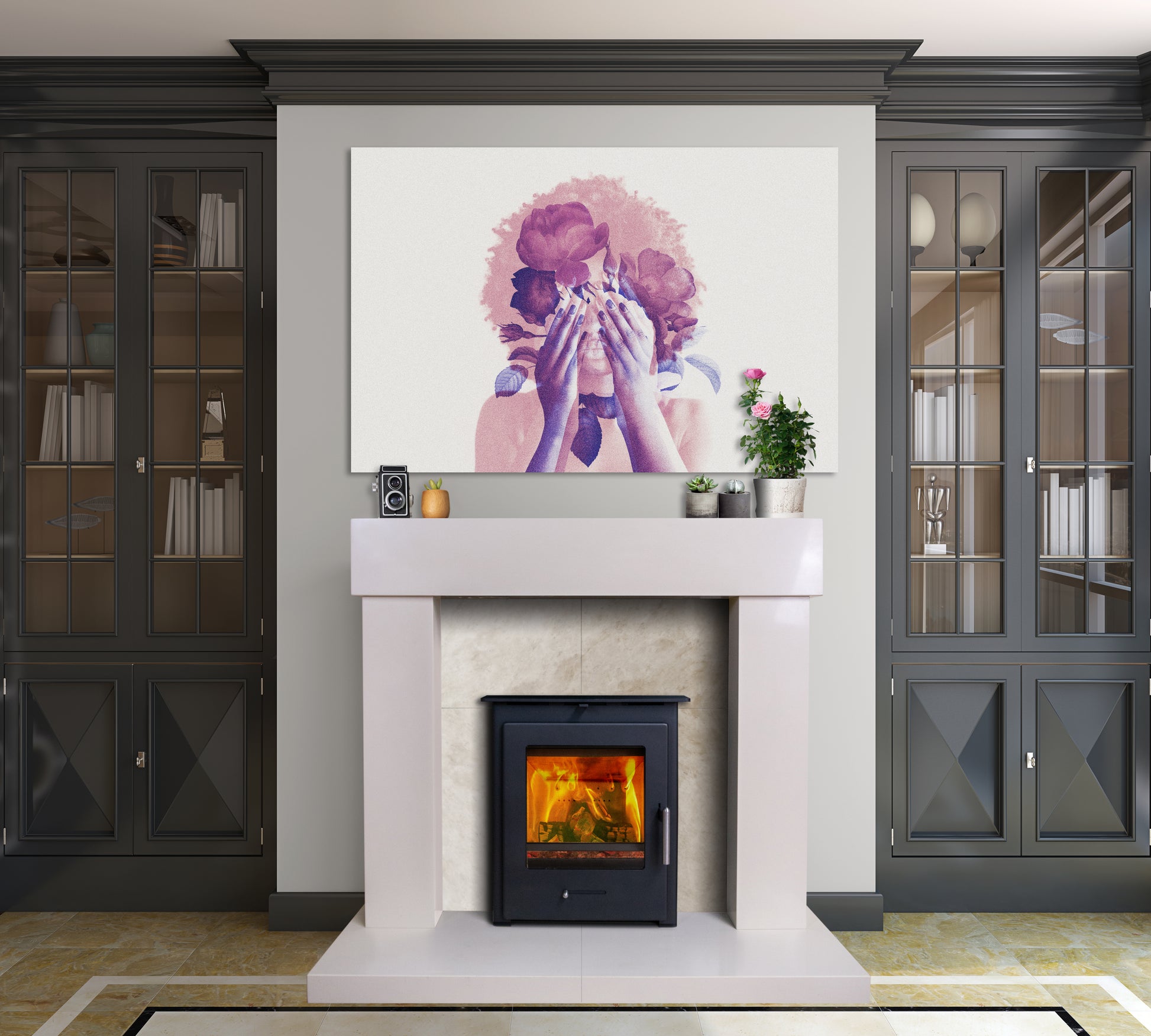

Pevex Slimline 30 Inset Tapered Back Stove

The Pevex 30 Slimline Inset 3-5kW inset stove is designed for installation into a 16 x 22" height fireplace opening.  Either install it into a standard milner fireback or alternatively knock-out the fireplace and back fill accordingly.  Recommended to install with a liner but can be flaunched into the fireplace once the chimney has been checked.and approved.  Either way, this stove will vastly improve the performance and efficiency of the old open inefficient fire with conrollable radiant and convection heat and clean burn performance.

Featuring a large glass window to give maximum view of the fire burning beautifully in the chamber, convection sides and top plate for wonderful warming heat and tertiary air combustion above the fuel for complete and clean burning combustion reducing the fuel and lowering the emissions that it produces.

A lift up cool-to-touch stainless steel door handle and air control knob is a stylish addition to the stove.  Optional chrome/black handle and air knob are available along with a wooden door handle.

Features

3-5kW nominal output
78% efficiency with burning wood
Large glass window
Full cast iron grate
Convection sides and top plate
Vermiculite lined fire chamber for improved combustion and efficiency
Teritiary air to optimise combustion and lower emissions
Primary and secondary air controls
Tested and approved to EN13229 for wood and approved smokeless fuel
Ecodesign approved

Specifications

Width x depth x height (mm)     491 x 313 x 606
Weight (kg)     58
Log length (mm)     280
Flue dia. (mm) outlet & position     127 Top
Nominal output (kW)     4.6
Range rating (kW)     4-6
Distance from rear of stove to centre of top flue outlet (mm)
Distance to flammable materials: From back (mm)     300
- From back with optional heat shield fitted (mm)
- From sides (mm)     250
- From front (mm)     800
Heating area (m²)     10-90
Efficiency (net): Wood     78.2%
Efficiency (net): Smokeless fuel     80%
CO% @ 13% O2: Wood     0.07
CO% @ 13% O2: Smokeless fuel     0.17
Certified     CE & EN13229
Defra approved
Ecodesign     yes
