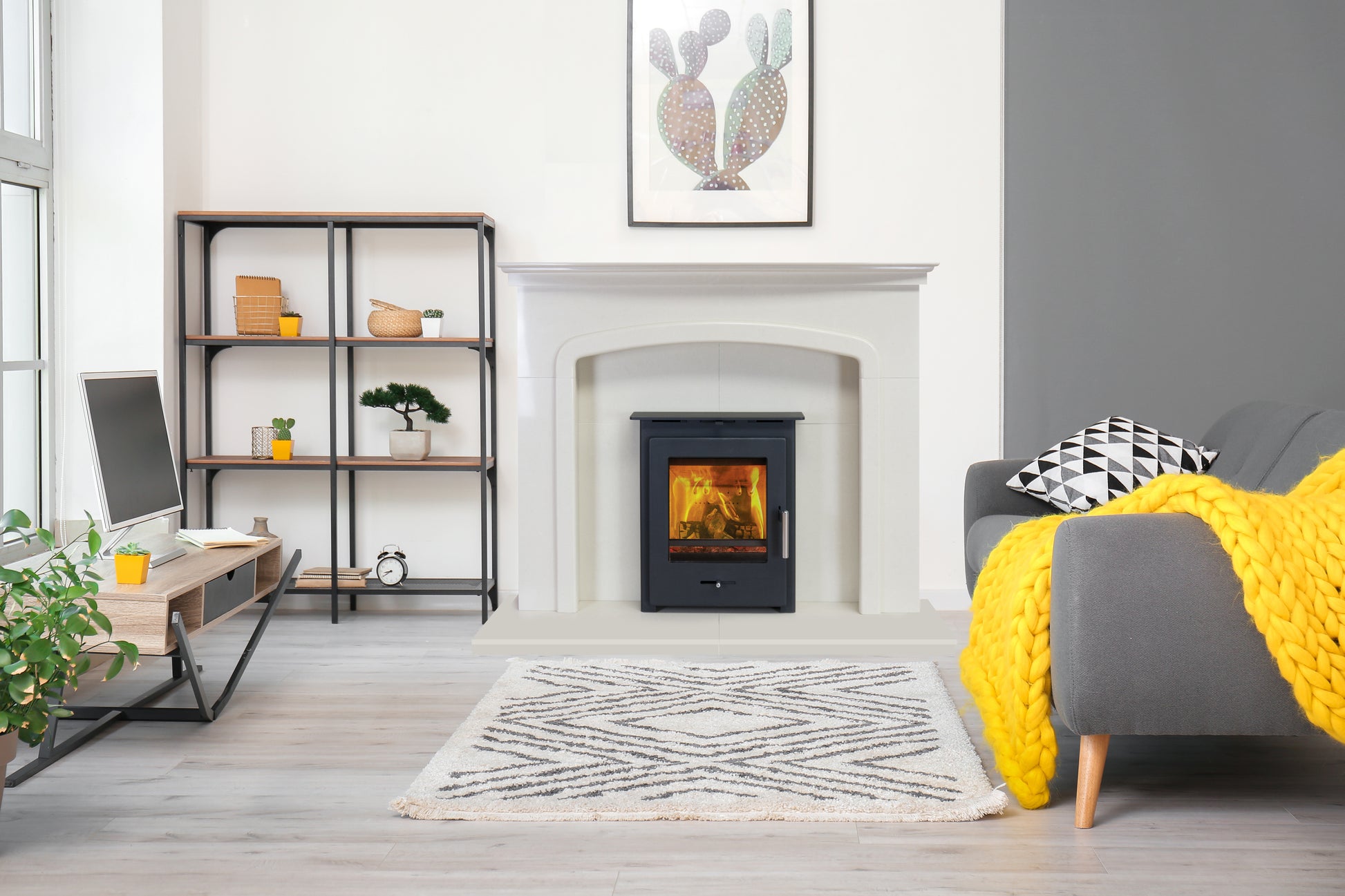

Pevex 60 Large Output Inset convector Multi-fuel Stove

The Pevex 60 Inset is a high output inset stove designed to fit into a standard UK 16” x 22” fireplace opening and with a unique cassette design for easy installation. This stove offers a huge increase in efficiency over an open fire but will also add a lovely focal point to your room.

Features

6kW nominal output
78% efficiency with burning wood
300mm log length
Heavy duty robust construction
Cast iron static grate
Primary air control and secondary air wash sliders
Convection sides and top plate
Vermiculite lined fire chamber for improved combustion and efficiency
Tertiary air for improved combustion
Tested and approved to EN13229 for wood and approved smokeless fuel
Defra approved for use in smoke control areas
Ecodesign approved

Specifications

Model: Pevex 60 Inset
Width x depth x height (mm): 492 x 466 x 606
Weight (kg): 110
Flue diameter (mm) outlet & position: 128 Top
Nominal output (kW): 6.5
Range rating (kW): 3–8
Distance from rear of stove to centre of top flue outlet (mm): 75
Distance to flammable materials from back (mm): 300
Distance to flammable materials from back with optional heat shield fitted (mm): (not specified)
Distance to flammable materials from sides (mm): 200
Distance to flammable materials from front (mm): 800
Heating area (m²): 10–100
Efficiency (net) Wood: 83.6%
Efficiency (net) Smokeless fuel: 79%
CO% @ 13% O₂ Wood: 0.07
CO% @ 13% O₂ Smokeless fuel: 0.088
Certified: CE & EN13229
Defra approved: Yes
Ecodesign: Yes
