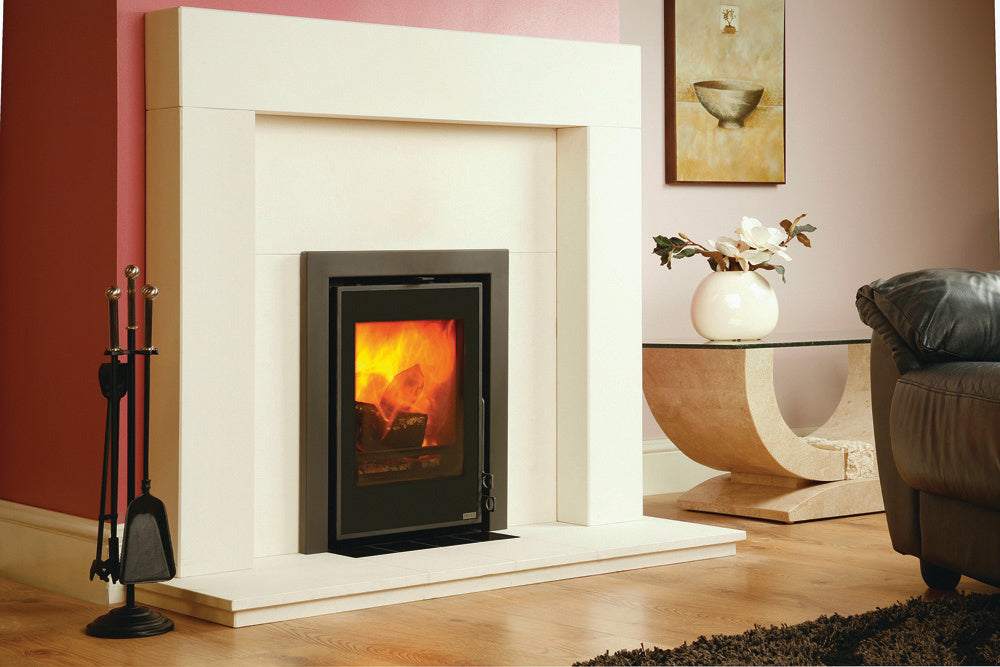

Pevex 40 Inset Ecodesign Convector Cassette Stove

A stylish inset stove featuring a full glass door window and simple to use air controls.  Designed to fit into a standard 16" x 22" UK fireplace opening (and a depth of only 13") which will add both a touch of beauty and increase the efficiency over an open fire.

UK designed and built to a high standard and quality, incorporating many new and unique innovative design features, to make the stove both easier to install and use.

Install directly on a hearth or elevate it into a hole in the wall and finish with a 3-sided or 4-sided frame to create a stunning focus pont.

Features

4.5kW nominal output
80% efficiency
Large firebox (290mm log length)
Tested and approved to EN13229 for wood
Smoke Exemption Approved for use in smoke control areas
Ecodesign approved for 2022

Specifications

Model: Serenity 40 Inset
Width x depth x height (mm): 492 x 343 x 576 (50mm 3 sided frame)
Weight (kg): 65
Log length (mm): 290
Flue diameter (mm) outlet & position: 125 Top
Nominal output (kW): 4.5
Range rating (kW): 2–6
Distance from rear of stove to centre of top flue outlet (mm): 250
Distance to flammable materials from back (mm): 250
Distance to flammable materials from back with optional heat shield fitted (mm): 200
Distance to flammable materials from sides (mm): 180
Distance to flammable materials from front (mm): 800
Heating area (m²): 10–100
Efficiency (net) Wood: 80%
Efficiency (net) Smokeless fuel: 83.5%
CO% @ 13% O₂ Wood: 0.14
CO% @ 13% O₂ Smokeless fuel: 0.21
Certified: CE & EN13229
Defra approved: Yes
Ecodesign: Yes
