Newbourne 40i Inset tapered Back Stove

Offering clean burn performance, with a built-in airwash to ensure that the stove window remains clean throughout the stove's use.

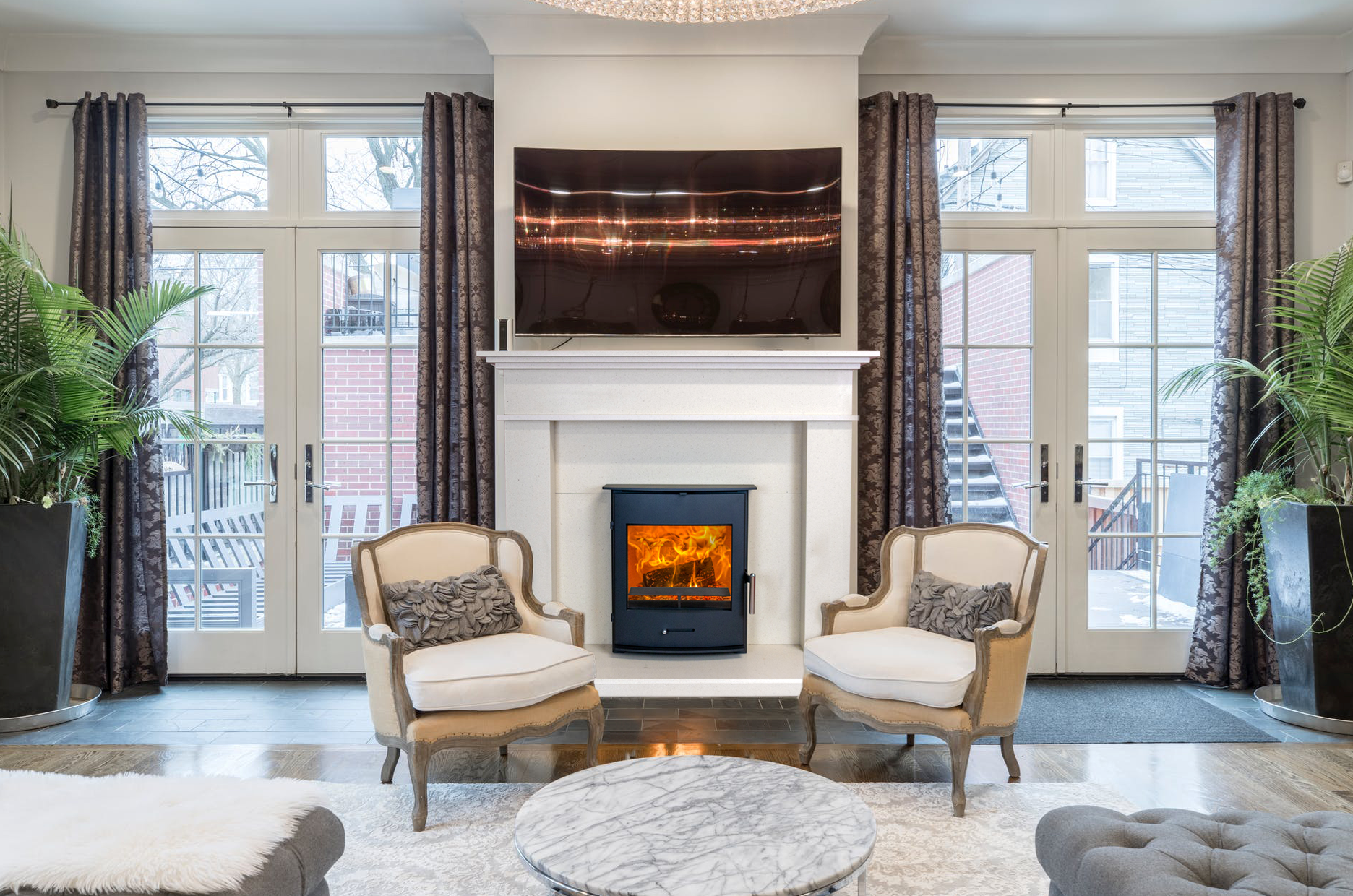

Offering striking good looks, a huge viewing window and simple operation like the Newbourne freestanding range but built to fit inside an existing 16x22" UK chimney fireplace opening.

By installing this stove into an existing fireplace will immediately improve the efficiency and performance of an open fire.

Features

Designed to fit into a 16"x22" standard UK builder's opening
4.5kW nominal output
79% efficiency
Designed for multifuel use
Convection sides and top plate
Suitable for use in smoke control areas
Cool touch handle
Built-in airwash
Tested and approved to EN13229
Hetas Approved
Smoke Exemption Approved for use in smoke control areas
Ecodesign ready

Specifications

Width x depth x height (mm)     490 x 431 x 606
Weight (kg)     70
Log length (mm)     250
Flue dia. (mm) outlet & position     128 Top/rear
Nominal output (kW)     5
Range rating (kW)
Distance from rear of stove to centre of top flue outlet (mm)     96.8
Distance to flammable materials: From back (mm)
- From back with optional heat shield fitted (mm)
- From sides (mm)
- From front (mm)     800
Heating area (m²)
Efficiency (net): Wood     79%
Efficiency (net): Smokeless fuel
CO% @ 13% O2: Wood
CO% @ 13% O2: Smokeless fuel
Certified     CE & EN13229
Defra approved     Yes
