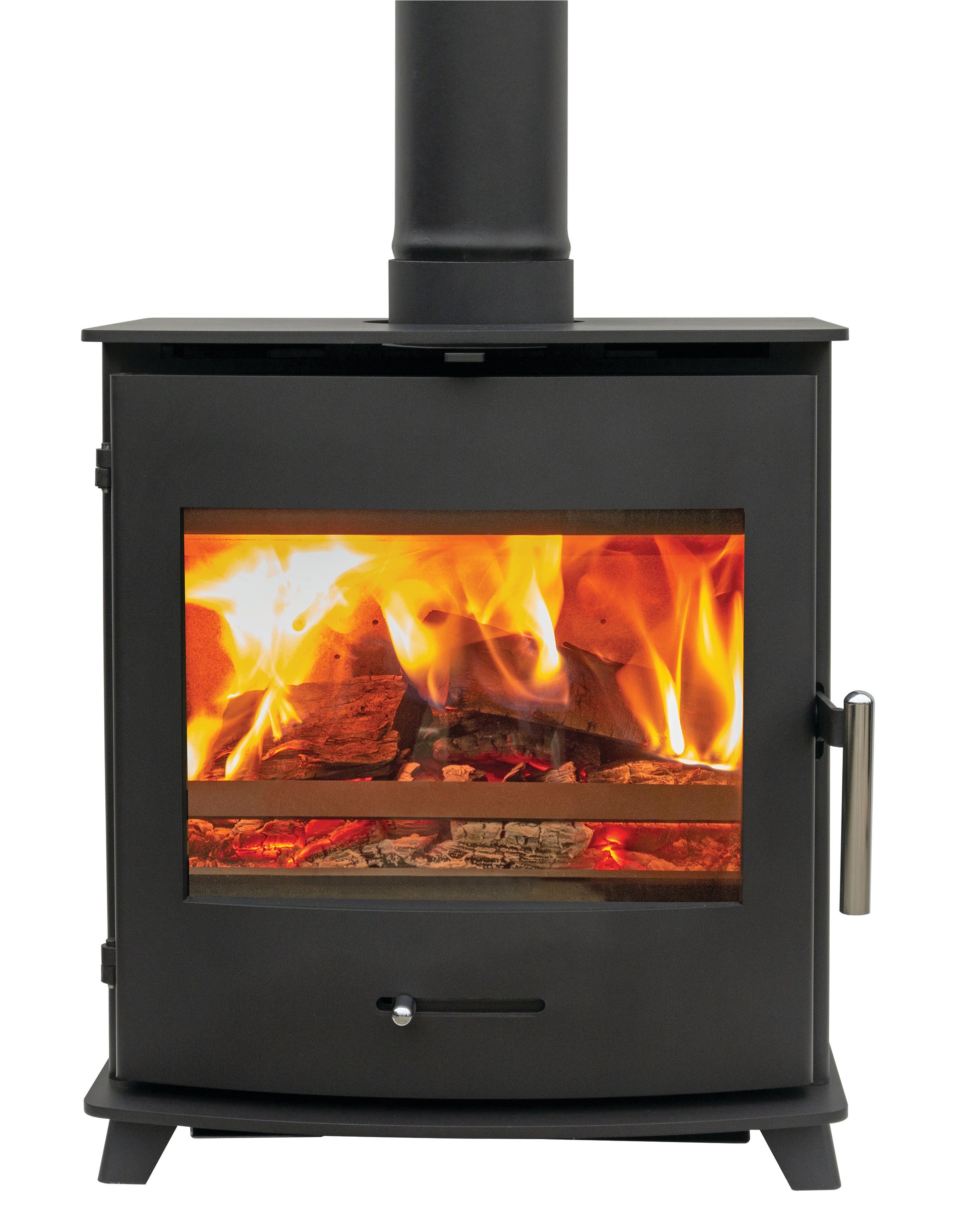

Newbourne 40FS Ecodesign Stove

Beautifully made with a curved door and a remarkable large picture window of the fire burning lazily in the fire chamber. With simple to operate air slider controls and built-in tertiary air, the Newbourne stove is a stylishly designed stove offering clean burn performance and is Ecodesign ready meeting tomorrows requirements today.


All Newbourne stoves offer multifuel use and are designed and built with a convection top plate, stainless steel cool-to-touch door handle and matching air control slider knob.  Choose different handle and knob options, leg heights or if room and the fireplace allows a logstore which raises the stove for easier loading.

Features

5kW or 5.5kW nominal outputs
Clean burn with 82.7% efficiency
Heavy-duty construction
Designed for multifuel use
Convector top plate
Cool touch handle
Built-in airwash
Tested and approved to EN13240
Hetas Approved
Ecodesign Approved
Smoke Exemption Approved for use in smoke control areas

Specifications

Width × Depth × Height (mm): 503 × 374 × 580
Weight: 85 kg
Log length: 360 mm
Flue dia. outlet & position: 128 mm Top/rear
Nominal output: 5 kW
Range rating: 3-6 kW
Distance from rear of stove to centre of top flue outlet: 131 mm
Distance to flammable materials:
From back: 400 mm
From back with optional heat-shield fitted: 185 mm
From sides: 400 mm
From front: 800 mm
Heating area: 20-90 m²
Efficiency (net): Wood: 82.7%
Efficiency (net): Smokeless fuel: 72.4%
CO% @13% O₂: Wood: 0.09%
CO% @13% O₂: Smokeless fuel: 0.33%
Certified: CE, EN13240, Ecodesign
DEFRA approved: yes
