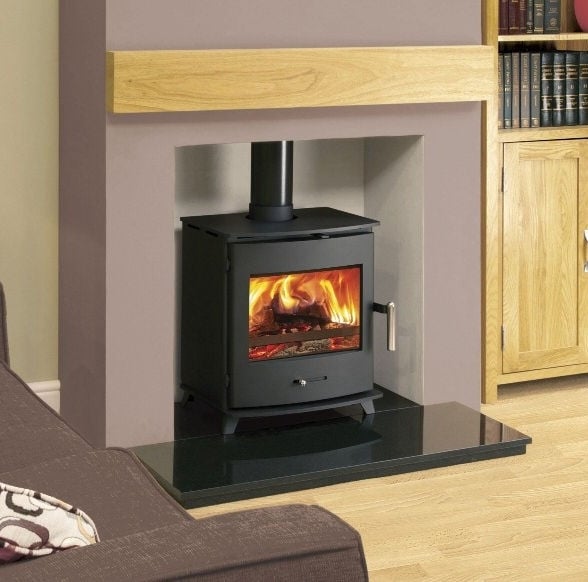

Newbourne 40FS Direct Air Ecodesign Stove

Stylish British-Designed stove with an amazing large window to give an impressive view of the fire with beautifully made curved door. Offers remarkable large picture window of the fire burning lazily in the fire chamber. With simple to operate air slider controls and built in tertiary air, the Newbourne stove offers clean burn performance in style.

Features

4.5kW nominal output
Clean burn with 80% efficiency
Heavy-duty construction
Convector top plate
Cool touch handle
Built-in airwash
Tested and approved to EN13240
DEFRA approved for use in smoke control areas

Specifications

Width × Depth × Height (mm): 503 × 374 × 580
Weight: 85 kg
Log length: 360 mm
Flue dia. (mm) outlet & position: 128 Top/rear
Nominal output: 4.5 kW
Range rating: 4-5 kW
Distance from rear of stove to centre of top flue outlet: 131 mm
Distance to flammable materials:
From back: 400 mm
From back with optional heat shield fitted: 185 mm
From sides: 400 mm
From front: 800 mm
Heating area: 20-90 m²
Efficiency (net): Wood: 79.5 %
Efficiency (net): Smokeless fuel: 72.4 %
