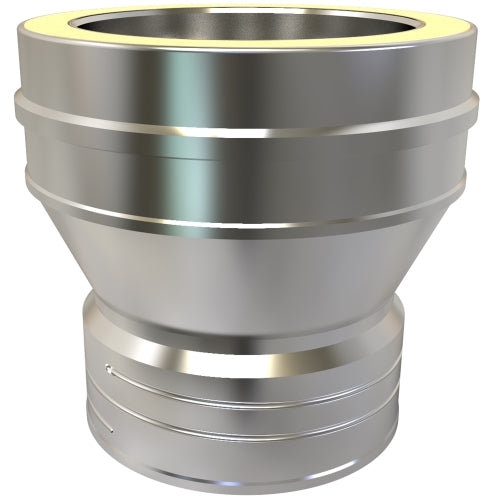

Flex to Twin Wall Adaptor - Ø 125 (2-125-101)

Transitional adaptor from MI-Flues multi fuel liner to TWPro . The adaptor has a screw fix coupling that screw onto the flexible flue liner. This transition must be made inside an existing class 1 Chimney. (no flex should be visible outside the brick or clay chimney.

Features

High-Temperature Resistance: Tested to withstand continuous operating temperatures up to 600°C, suitable for T600 applications.
Durable Construction: Inner layer made of 316L stainless steel (0.40mm thick) and outer layer of 304L stainless steel (0.40mm thick) for enhanced corrosion resistance and longevity.
Efficient Insulation: Insulated with compressed rockwool at a density of 200kg/m³, providing excellent thermal insulation and safety.
Secure Jointing System: Features a screw-fix coupling for easy and secure attachment to the flexible flue liner.
Fully Welded Design: Ensures structural integrity and a gas-tight seal for optimal performance.
Compliance and Approval: HETAS approved and CE marked, meeting stringent safety and quality standards.

Specifications

Designation: EN1856-1 T600 N1 W V2 L50040 G50 / EN1856-1 T200 P1 W V2 L50040 O20
System: TWPro
Inner Material: 316L Stainless Steel - 0.40mm thick
Outer Material: 304L Stainless Steel - 0.40mm thick
Insulation: Compressed Rockwool (200kg/m³)
Fuels: Wood, Oil, Gas, Low Sulphur Coal
Approvals: HETAS / CE
Distance to Combustibles: 50mm
