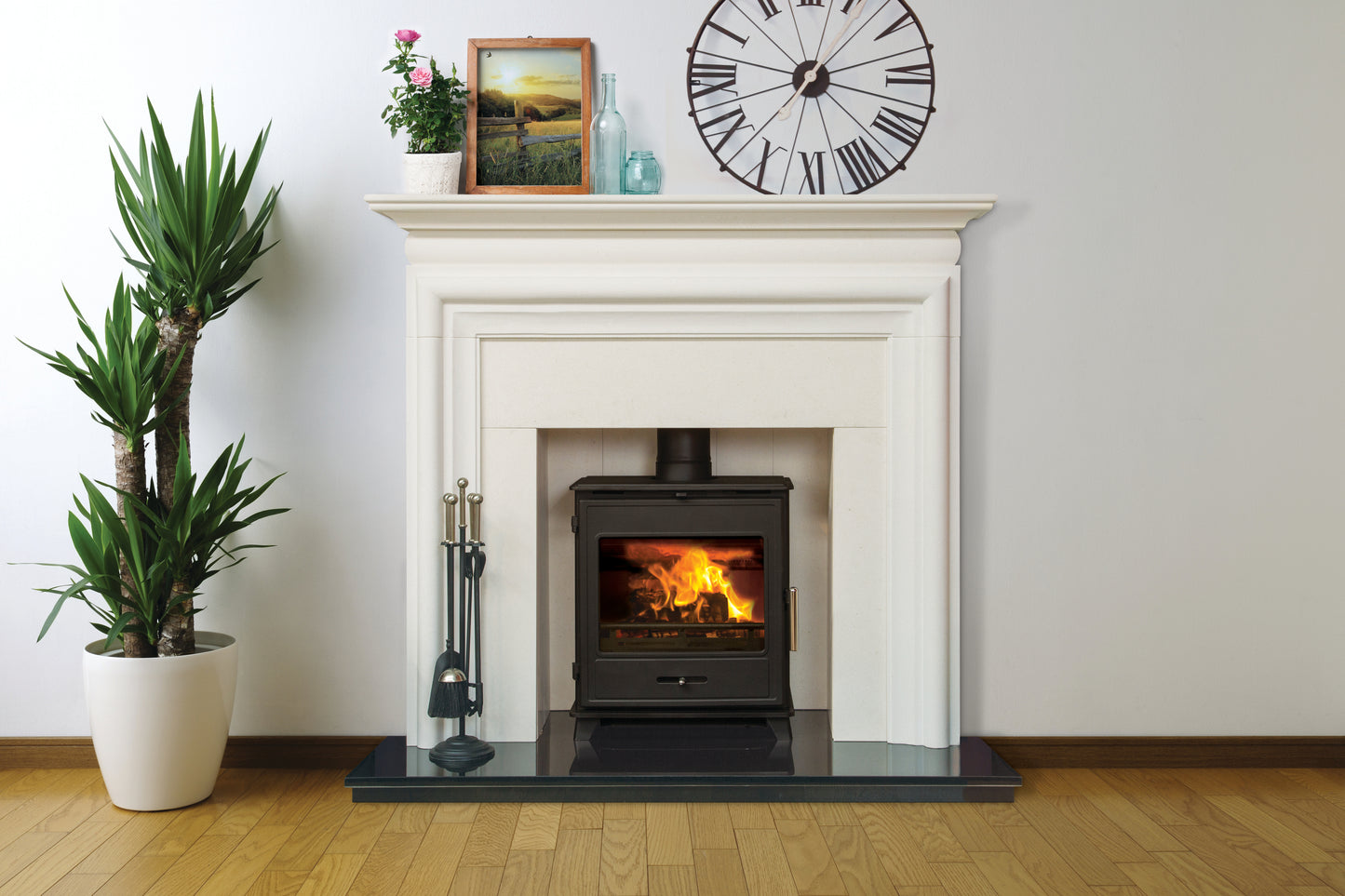

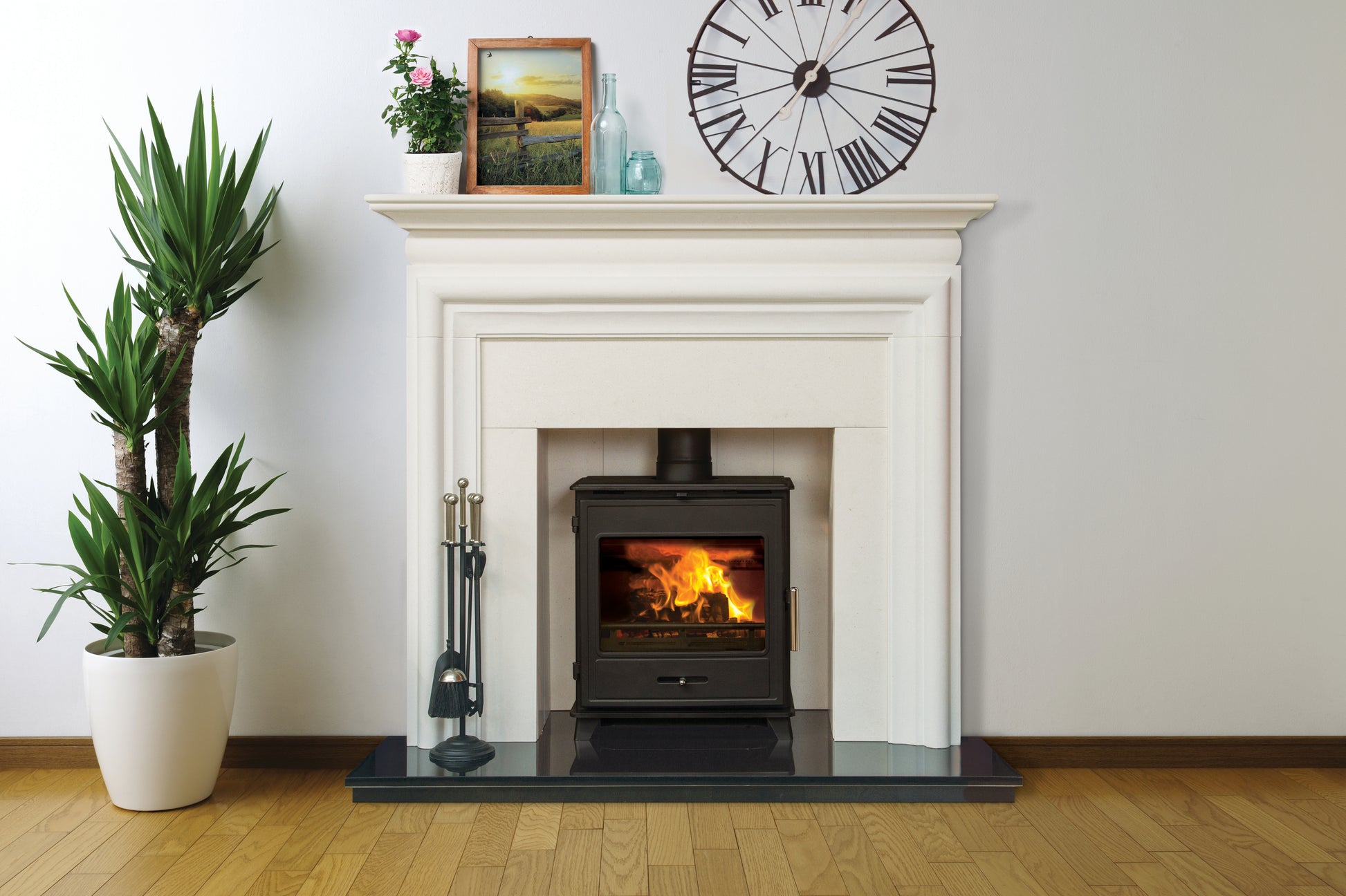

Bucklesham 40FS Cast Iron Door and Top Plate Stove

The UK Designed Bucklesham 40 multifuel stove features a full size cast iron door giving a wide and impressive view of the fire. A gently contoured door profile and a cast iron convector top plate ensures that the Bucklesham stove offers a stylish yet practical addition to any fireplace setting.

Features

4.5kW nominal output
Full size cast iron door
Cast iron convector top plate
Pevex clean burn technology
Tested and approved to EN13240 for wood and approved smokeless fuel
Smoke Exemption Approved for use in smoke control areas

Specifications

Model    Bucklesham 40FS
Width x depth x height (mm)     505 x 305 x 585
Weight (kg)     84
Log length (mm)     360
Flue dia. (mm) outlet & position     128 Top/rear
Nominal output (kW)     4.5
Range rating (kW)     4-5
Distance from rear of stove to centre of top flue outlet (mm)     107
Distance to flammable materials: From back (mm)     400
- From back with optional heat shield fitted (mm)
- From sides (mm)     400
- From front (mm)     800
Heating area (m²)     20-90
Efficiency (net): Wood     79.5%
Efficiency (net): Smokeless fuel     72.4%
CO% @ 13% O2: Wood     0.14
CO% @ 13% O2: Smokeless fuel     0.33
Certified     CE & EN13240
Defra approved     Yes
